Availability : Usually Ships in 12-15 Business Days
- Corrosion-resistant construction with galvanized steel, cast iron, and stainless steel
- Pre-built eye/face wash for easy installation and reliability
- Durable valves for quick activation with corrosion-resistant components
- Includes a strainer to prevent debris in the water, enhancing safety and function
- Hydrodynamic showerhead design ensures even water distribution
- Inverted eyewash flow protects against contaminant penetration
- Optional features include scald protection, a mixing valve for temperature control, and an emergency alarm system

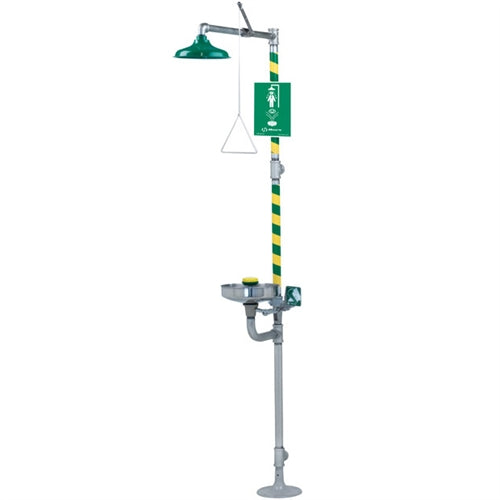

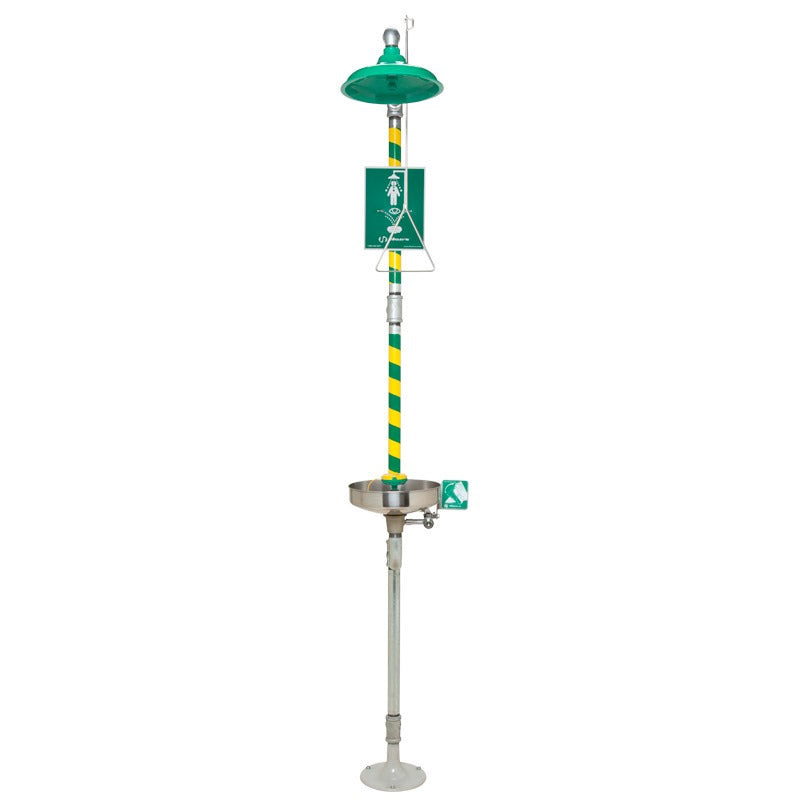

Combination Drench Shower & Eye/Face Wash Station With Plastic AXION MSR Eye/Face Wash and Shower Head, Meets ANSI Z358.1-2014 Requirements. Box Dimensions: 29X18X13
Model 8300-8309 combination shower and eye/face wash shall include a stainless steel 11" round bowl, an antimicrobially treated AXION MSR eye/face wash head to help protect against the growth of mold and mildew on the treated components, and shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral 3.7 gpm flow control. Unit shall also include the AXION MSR hydrodynamic designed ABS plastic shower head with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit shall also include Schedule 40 hot-dipped galvanized steel pipe and fittings, powder-coated cast-iron 9" diameter floor flange, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" IPS supply.
CONSTRUCTION

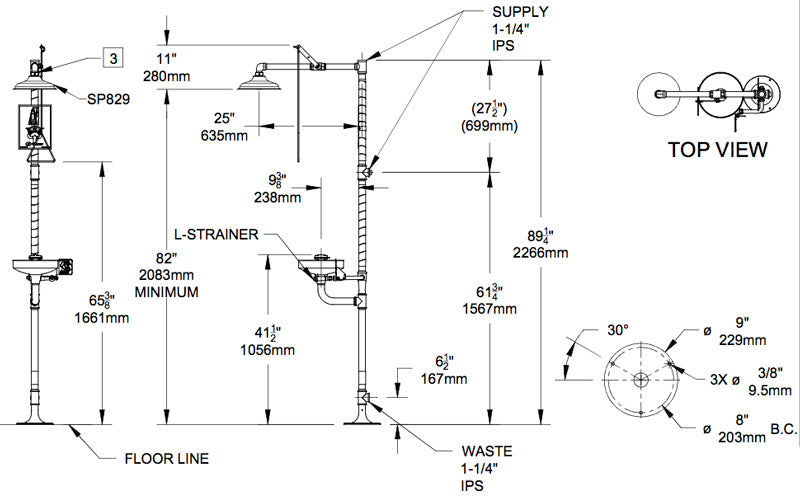

1-1/4" IPS Schedule 40 hot-dipped galvanized steel pipe and fittings along with powder-coated cast-iron 9" (22.9 cm) diameter floor flange and 11" (27.9 cm) stainless steel receptor provide an additional corrosion resistance in a long lasting product.
QUALITY CONTROL
Eye/face wash and valve assembly are pre-built and fully water/pressure tested to ensure no leaks and proper function which ultimately reduces installation time.
VALVES
Eyewash and shower ball valves are designed to make the flushing of contaminants occur with the simple pull of a lever or push of a stainless steel flag. Both valves come equipped with stainless steel ball and stem to provide greater protection against corrosion and breakage.
STRAINERS/FILTERS
Chrome-plated brass in-line 50 x 50 mesh water strainer prevents debris from reaching the eyewash so the unit stays functioning at its best. Strainer is easily serviceable.
SHOWERHEAD
AXION® MSR ABS plastic drench showerhead uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.
EYE/FACE WASH
AXION® MSR eye/face wash head uses an inverted directional laminar flow to sweep contaminants away from the vulnerable nasal cavity.
Item | Combination Safety Shower Eyewash Stations |
Sprayhead | Eye/Facewash |
Shower Mounting | Floor Mount |
Eyewash Bowl Material | Stainless Steel |
Operation | Push Handle |
Shower Operation | Pull Down Arm |
Shower Head Material | Plastic |
Head Dia. | 10-5/8" |
Bowl Dia. | 11" |
ANSI Compliant | Yes |
