Availability : Usually Ships in 5 Business Days
- Unit can be deck or wall mounted with easy change-over instructions
- Extended-length pull down arms are designed to accommodate wheelchair access
- Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
- Dust cover allows for the 7610 to stay protected from debris when not in use
- Activation and deactivation occur at a 30 degree angle from horizontal limiting splash of water onto counter or wall
- Rear mount design allows the sink to remain open to other uses
- For sinks this model will not fit over, the 13 inch drop-down length of the Haws model 7610S fits nicely into most standard sinks.
Barrier-Free, Single Action Swing-Down Eye/Face Wash Station, Rear Of Sink Or Counter Top Mount, Meets ANSI Z358.1-2014 Requirements

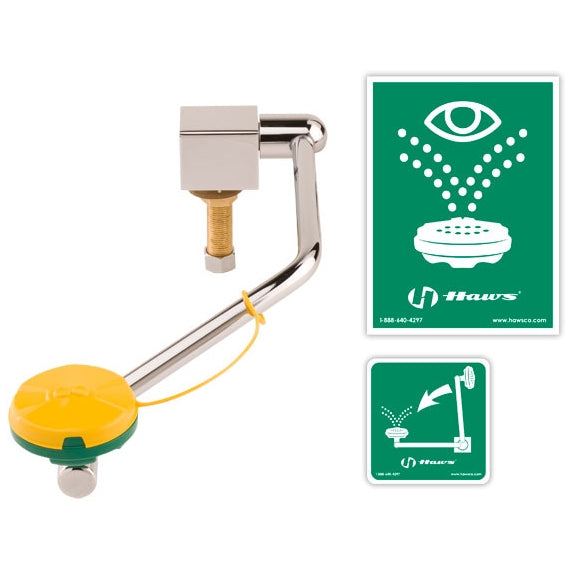

Model 7610 barrier-free sink/countertop eye/face wash shall include green ABS plastic eye/face wash heads with integral flow-controls and dust covers, polished chrome brass single action pull-down valve body, wheel chair accessibility, universal sign, and 1/2" O.D. slip joint inlet.
The Haws 7610 ADA accessible wall or deck mount pull down eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain.
Item | Barrier Free Eyewash |
Sprayhead | Eye/Facewash |
Mounting | Counter Mount |
Operation | Swing Activation |
Eye Wash and Shower Mounting | Deck |
Eye Wash Bowl Material | No Bowl |
Spray Head Material | ABS Plastic |
Eye Wash Activates By | Swing |
Eye Wash Covering | Yes |
Assembled/Unassembled | Assembled |
ADA Compliance | Yes |
ANSI Compliant | Yes |
Number of Heads | 1 |
Color | Chrome |
Valve Material | Chrome Plated Brass |
Fitting Material | Chrome Plated Brass |
Pipe Material | Chrome Plated Brass |
Fitting Size | 1/2 in NPT Female |
Head Dia. | 2.25 in |
Width | 8.125 in |
Depth | 18.25 in |
Height | 19 in |
Standards | CSA Certified to ANSI Z358.1 |
Includes | Identification Sign and Inspection Tag, Pop Off Dust Cover |
