Guardian GBF1643 Barrier-Free Emergency Shower, Horizontally Mounted, Plastic Shower Head
Availability : Usually Ships in 7-10 Business Days

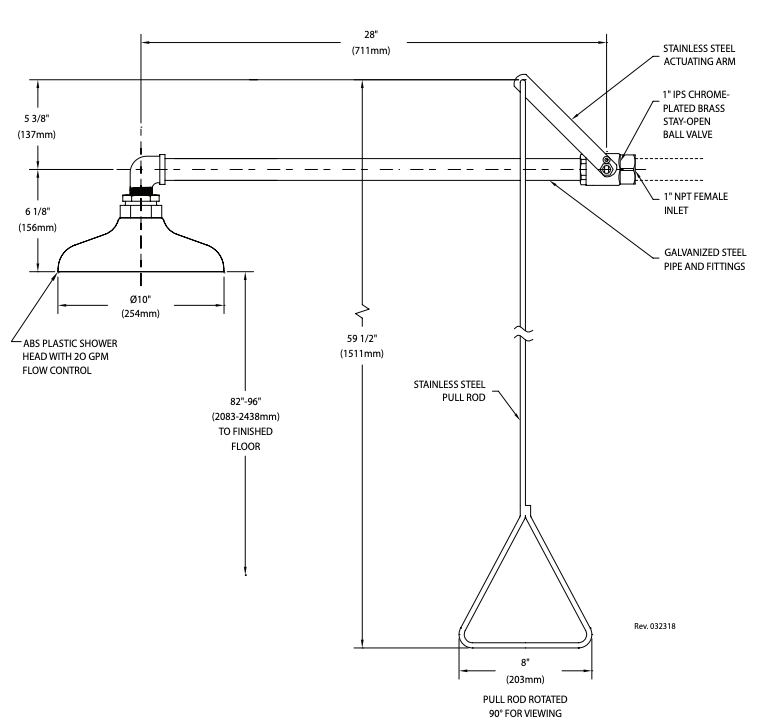

APPLICATION: Handicapped accessible emergency shower for horizontal mounting. Unit should be installed so that shower head is at least 82" above floor and 32" from wall or nearest obstruction.
ADA COMPLIANCE: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach and distance from obstructions).
SHOWER HEAD: 10" diameter orange ABS plastic.
VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 59 1/2" stainless steel pull rod.
PIPE AND FITTINGS: 1" IPS galvanized steel nipple with orange ABS plastic elbow.
SUPPLY: 1" NPT female inlet.
SIGN: ANSI-compliant identification sign.
| Item | Barrier Free Eyewash |
| Shower Mounting | Horizontal Mount |
| Installation Type | Plumbed |
| Mount Type | Wall |
| Mounting Style | Standard |
| Activation | Pull Rod |
| Valve Material | Chrome Plated Brass |
| Pipe MaterialGalvanized Steel | Pipe MaterialGalvanized Steel |
| Showerhead Shroud | Yes |
| Spray Head Diameter | 10 in |
| Handle Length | 59-1/2 in |
| Color | Orange |
| Maximum Flow Rate | 20 gpm |
| Inlet Pipe Size | 1 in |
| Inlet Pipe Thread Type | NPT |
| Inlet Pipe Gender | Female |
| Width | 1 in |
| Depth | 28 in |
| Barrier Free | Yes |
