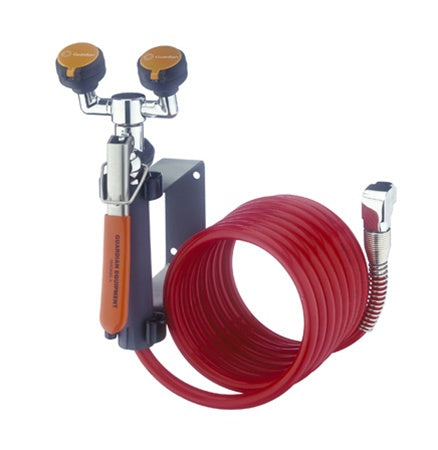

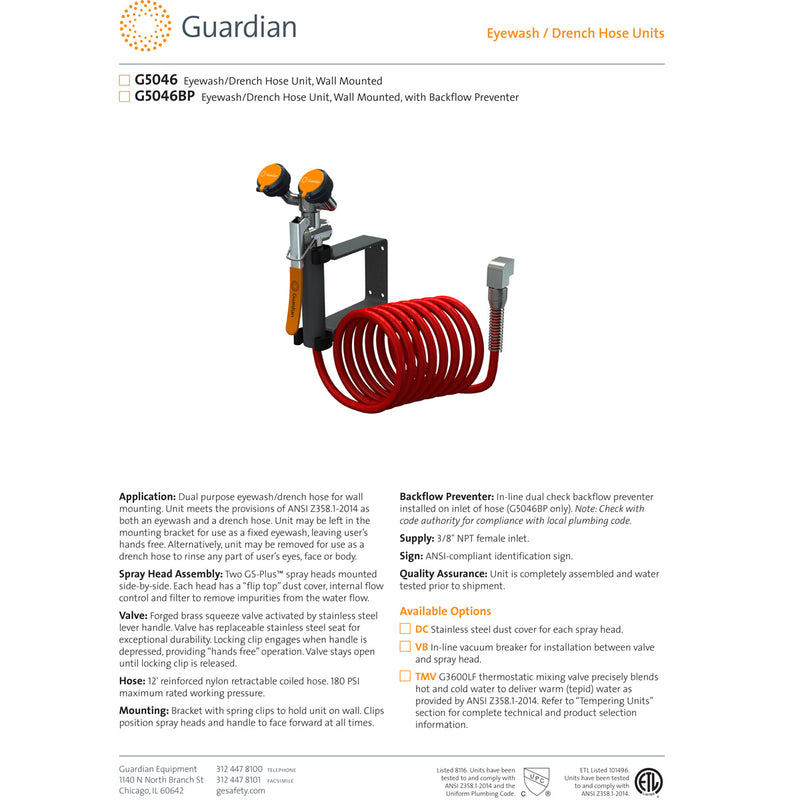

APPLICATION: Dual purpose eyewash/drench hose for wall mounting. Unit meets the provisions of ANSI Z358.1 - 2004 as both an eyewash and a drench hose. Unit may be left in the mounting bracket for use as a fixed eyewash, leaving user's hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user's eyes, face or body.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads mounted side-by-side. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Locking clip engages when handle is depressed, providing "hands free" operation. Valve stays open until locking clip is released.
HOSE: 12' reinforced nylon retractable coiled hose. 180 PSI maximum rated working pressure.
MOUNTING: Bracket with spring clips to hold unit on wall. Clips position spray heads and handle to face forward at all times.
SUPPLY: 3/8" NPT female inlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads mounted side-by-side. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Locking clip engages when handle is depressed, providing "hands free" operation. Valve stays open until locking clip is released.
HOSE: 12' reinforced nylon retractable coiled hose. 180 PSI maximum rated working pressure.
MOUNTING: Bracket with spring clips to hold unit on wall. Clips position spray heads and handle to face forward at all times.
SUPPLY: 3/8" NPT female inlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment.
| Item | Dual Head Drench Hose |
| Eye Wash and Shower Mounting | Wall |
| Hose Length | 12 ft |
| Drench Hose Valve Type | Stay-Open |
| Flow Rate | 3.2 gpm |
| Covers | Flip Top |
| Includes | Identification Sign and Inspection Tag, Wall Bracket |
| ANSI Compliant | Yes |
| Hose Material | Nylon |
| Head Dia. | 1 1/2 in |
| Inlet Size | 3/8 in NPT |
| Standards | ANSI Z358.1-2014 |
WARNING:Â California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
