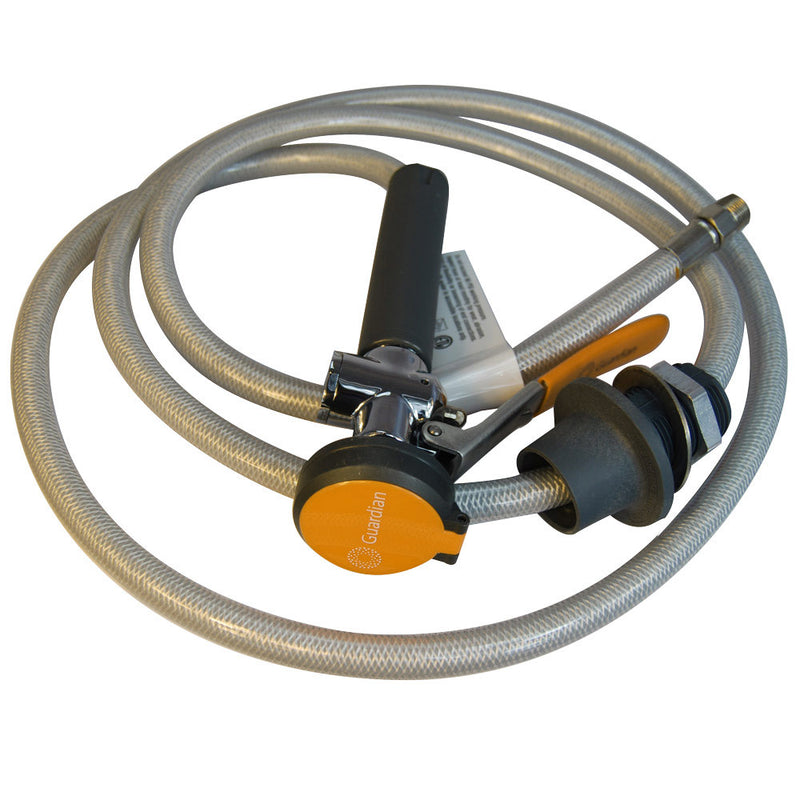

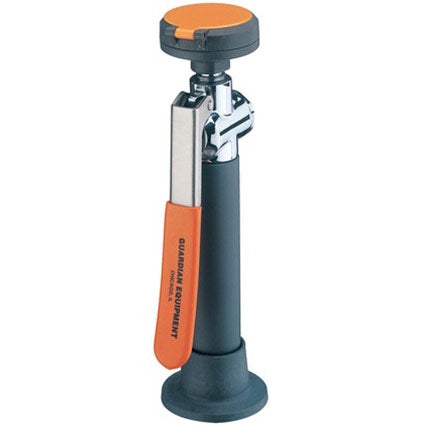

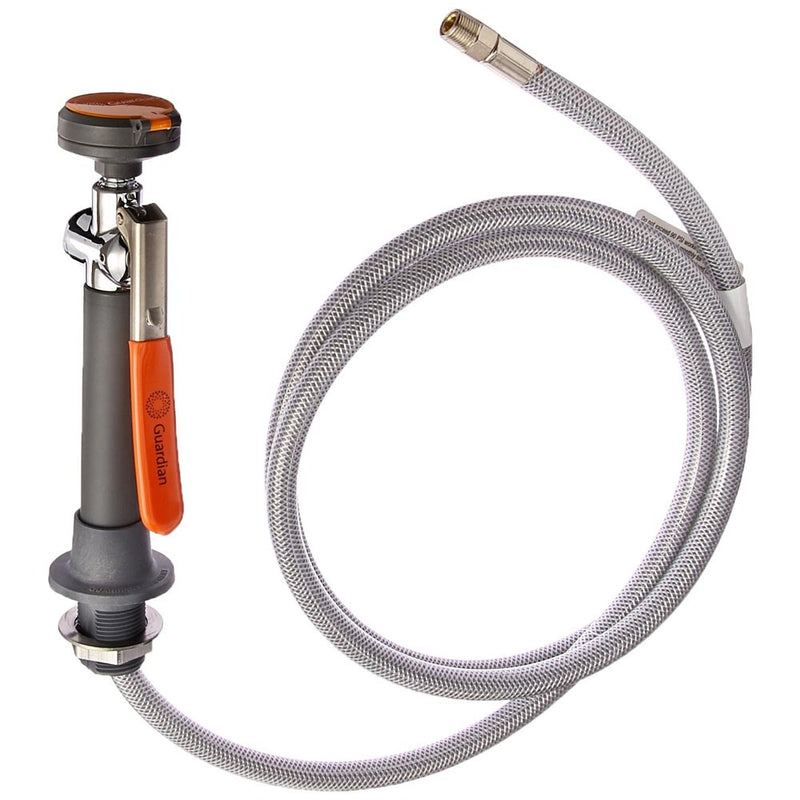

Guardian G5020 Single Head Eyewash Drench Hose Unit, Deck Mounted
Availability : Usually Ships in 2-3 Business Days
- Deck mounted drench hoseĀ
- Single FS-Plus spray head
- Flip Top Dust Cover
- Filter removes debris from water
APPLICATION: Drench hose unit for deck mounting. Ideal for rinsing any part of user's eye, face or body. Note: Under ANSI Z358.1 - 2004, drench hose units supplement, but do not replace, other types of emergency equipment.

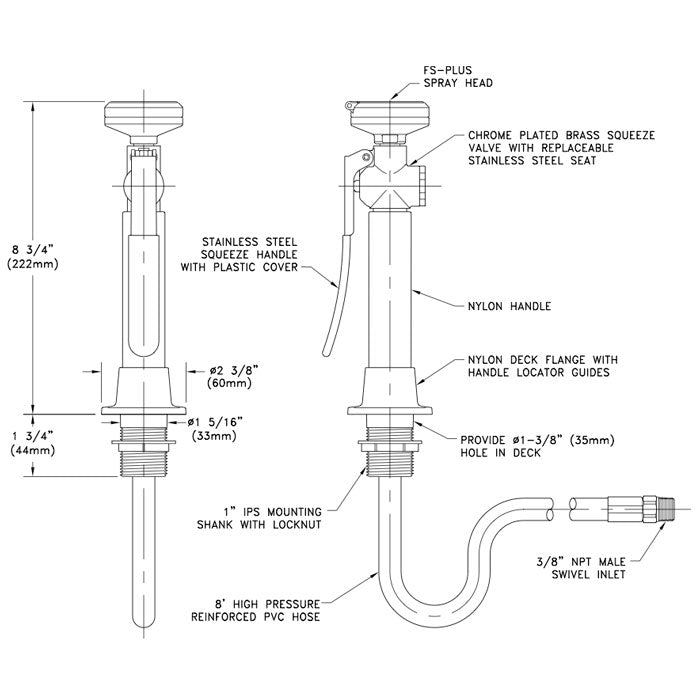

SPRAY HEAD: Single FS-Plus spray head. Spray head has "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released.
HOSE: 8' reinforced PVC hose. 300 PSI maximum working pressure.
MOUNTING: Deck flange for countertop mounting. Flange has handle locator guide to position handle to face forward at all times.
SUPPLY: 3/8" NPT male swivel-type inlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment. br>
| Item | Drench Hoses |
| Sprayhead | Single Spray Head |
| Mounting | Counter Mount |
| Hose Length | 8 ft. |
| Flow Rate | 3.2 gpm |
| ANSI Compliant | Yes |
| Head Dia. | 2-1/4" |
| Inlet Size | 3/8" NPT |
