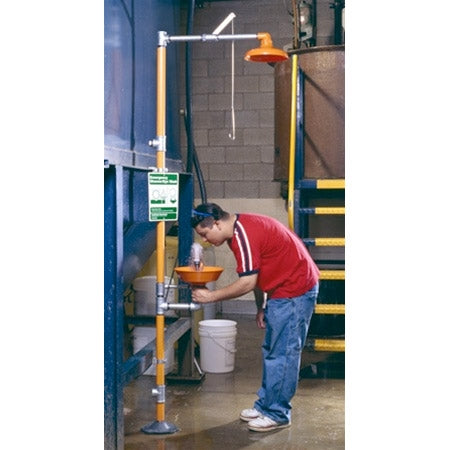

- Eye wash and safety shower combination.
- 10" orange ABS shower head, delivering 30 GPM at 30 PSI.
- 12" orange ABS bowl for efficient water drainage.
- Complies with ANSI Z358.1 standard.
- High-visibility orange ABS pipe covering.
Safety station combines eye wash and shower from a single water outlet. Stay-open ball valves. 10" safety orange ABS plastic shower head delivers 30 GPM at 30 PSI. Spray pattern is 20" in diameter at 60" above floor. Stainless steel pull rod is easily located and grasped in an emergency. 12" orange ABS plastic bowl acts like a sink to drain water away. Unit comes with orange ABS pipe covering for high visibility. Unit meets ANSI Z358.1 standard as primary eye wash and emergency shower. Complete with ANSI compliant identification sign.
Includes: Flip Top Dust Covers, High Visibilty Identification Sign, Orange Covers For Vertical Piping And Inspection Tag
APPLICATION:
Combination eyewash and shower safety station. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.
SHOWER HEAD:
10" diameter orange ABS plastic.
SHOWER VALVE:
1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY:
Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYEWASH BOWL:
11 1/2" ABS plastic.Â
EYEWASH VALVE:
1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
PIPE AND FITTINGS:
Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY:
1 1/4" NPT female top or side inlet.
WASTE:
1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN:
Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE:
Valve and spray head assemblies are factory assembled and water tested prior to shipment.
| Item | Shower with Eye Wash |
| Pipe Material | Galvanized Steel |
| Eye Wash Bowl Material | ABS Plastic |
| Shower Head Material | Plastic |
| Valve Material | Brass |
| Color | Orange |
| Width | 16 in |
| Height | 96 in |
| Head Dia. | 1 1/2 in |
| Bowl Dia. | 11 3/4 in |
| Eye Wash Activates By | Flag Push Handle |
| Eye Wash Handle Material | Cast Aluminum |
| Shower Head Activates By | Pull Handle |
| Shower Handle Length | 30 in |
| Shower Handle Material | Stainless Steel |
| Fitting Size | 1-1/4 in |
| Fitting Material | Galvanized Steel |
| Eye Wash and Shower Mounting | Floor |
| Standards | ANSI Z358.1-2014 |
| ADA Compliance | No |
| Assembled/Unassembled | Unassembled |
| Eye Wash Covering | Yes |
| ANSI Compliant | Yes |
| Heat Traced | No |
