Guardian G1902BC Safety Shower with Eyewash Station, Stainless Steel Bowl and Cover
Availability : Usually Ships in 12-15 Business Days
- Stainless steel bowl with cover for eyewash station
- Eyewash cover auto-lifts with flag handle use
- Includes two GS-Plus spray heads
- Features a 10" diameter shower head
- Designed with a 20 GPM flow control
- Utilizes chrome-plated brass valves
- Comes with ANSI-compliant identification sign

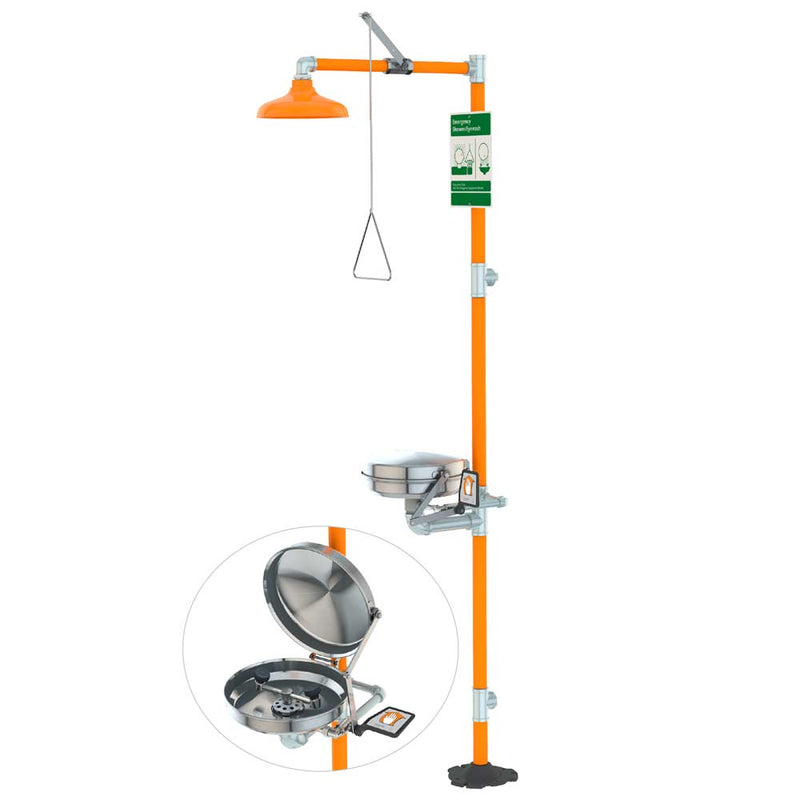

Combination eyewash and shower safety station. Eyewash has stainless steel cover to protect bowl from dust, dirt and other contaminants. Cover is raised automatically when flag handle is activated. Cover closes when handle is returned to closed position. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.

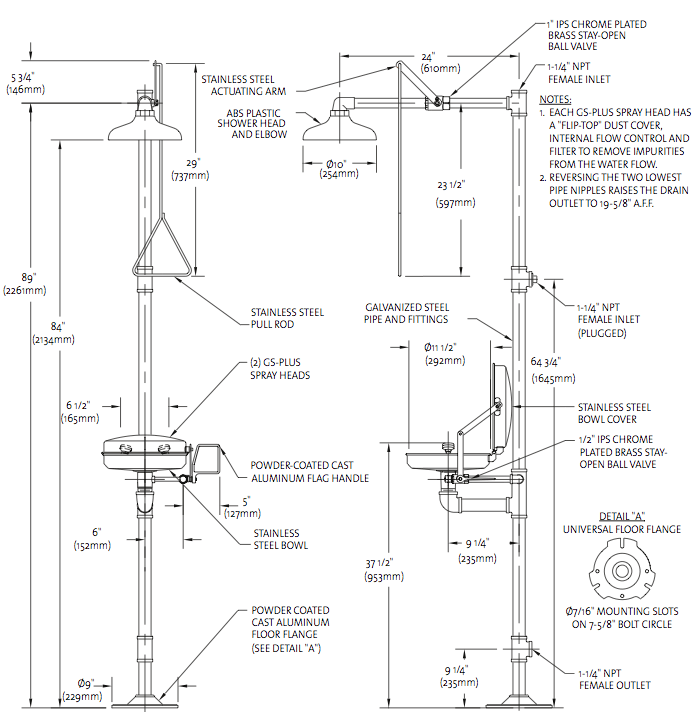

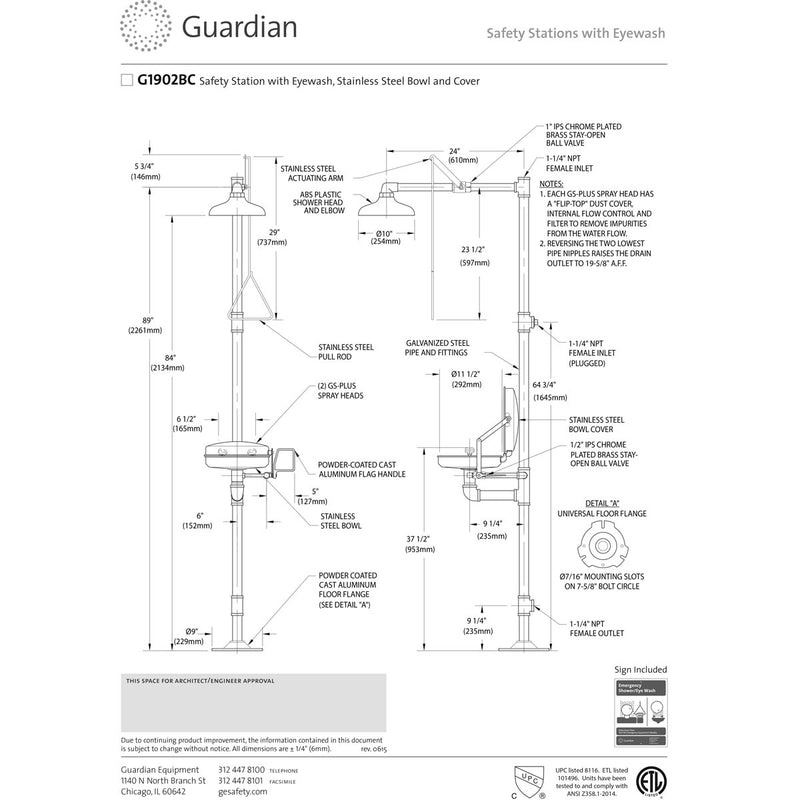

SHOWER HEAD:
10" diameter orange ABS plastic.
SHOWER VALVE:
1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY:
Two GS-Plus spray heads. Each head has an internal flow control and filter to remove impurities from water.

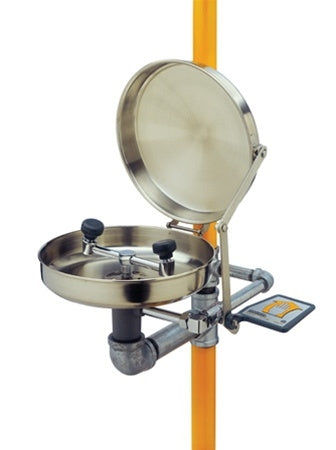

EYE/FACE WASH BOWL:
11 1/2" stainless steel with stainless steel cover.
EYE/FACE WASH VALVE:
1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
PIPE AND FITTINGS:
Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY:
1 1/4" NPT female top or side inlet.
WASTE:
1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN:
Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE:
Valve and spray head assemblies are factory assembled and water tested prior to shipment.
Includes:
High-Visibility Identification Sign, Hinged Dust Cover, Orange Covers For Vertical Piping And Inspection Tag
| Item | Shower with Eye Wash |
| Pipe Material | Galvanized Steel |
| Eye Wash Bowl Material | Stainless Steel |
| Shower Head Material | Plastic |
| Valve Material | Brass |
| Color | Orange |
| Width | 16 in |
| Height | 96 in |
| Head Dia. | 1 1/2 in |
| Bowl Dia. | 11 1/2 in |
| Eye Wash Activates By | Flag Push Handle |
| Eye Wash Handle Material | Cast Aluminum |
| Shower Head Activates By | Pull Handle |
| Shower Handle Length | 30 in |
| Shower Handle Material | Stainless Steel |
| Fitting Size | 1-1/4 in |
| Fitting Material | Galvanized Steel |
| Eye Wash and Shower Mounting | Floor |
| Standards | ANSI Z358.1-2014 |
| ADA Compliance | No |
| Assembled/Unassembled | Unassembled |
| Eye Wash Covering | Yes |
| ANSI Compliant | Yes |
| Heat Traced | No |
