Guardian G1848L Eyewash Station, Wall Mounted, Swing-Down
Availability : Usually Ships in 1-2 Business Days

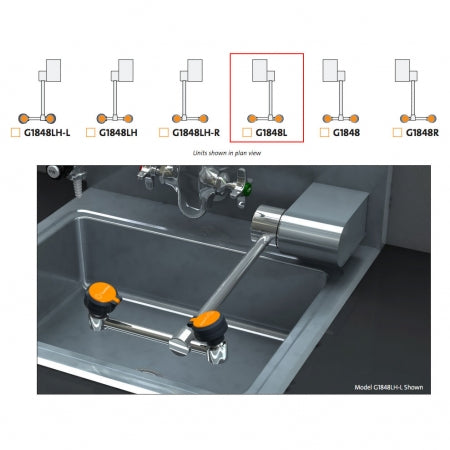

AutoFlow eyewash for mounting on wall.Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink.
Note: If unit is not installed at a sink, floor drain should be provided underneath unit to prevent accumulation of water on floor
Application: AutoFlow™ eyewash for mounting on wall. Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink. Note: If unit is not installed at a sink, floor drain should be provided underneath unit to prevent accumulation of water on floor.
Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2" IPS plug-type valve with PTFE coated O-ring seals. Swinging head assembly from storage to operational position opens orifice and activates water flow. Unit remains in operation until head assembly is returned to storage position.
Strainer: Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line.
Mounting: Valve is installed in Type 316 stainless steel housing. Mount housing on wall using anchors or other mounting hardware. Construction: Polished chrome plated brass.
Supply: 1/2" NPT female inlet. Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
Note: If unit is not installed at a sink, floor drain should be provided underneath unit to prevent accumulation of water on floor
- Swing Activated
- Eyewash Spray Head
- Wall Mounted
- 1/2" NPT Supply Inlet
- Exceeds 0.4 GPM at 30 PSI
-
Meets ANSI Standard Z358.1
Application: AutoFlow™ eyewash for mounting on wall. Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink. Note: If unit is not installed at a sink, floor drain should be provided underneath unit to prevent accumulation of water on floor.
Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2" IPS plug-type valve with PTFE coated O-ring seals. Swinging head assembly from storage to operational position opens orifice and activates water flow. Unit remains in operation until head assembly is returned to storage position.
Strainer: Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line.
Mounting: Valve is installed in Type 316 stainless steel housing. Mount housing on wall using anchors or other mounting hardware. Construction: Polished chrome plated brass.
Supply: 1/2" NPT female inlet. Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
| Sprayhead | Eyewash |
| Mounting | Wall Mount |
| Operation | Swing Activation |
| Installation Type | Plumbed |
| Environment | General Purpose |
| Mount Type | Counter |
| Coverage | Eyes |
| Bowl Style | No Bowl |
| Activation | Swing Down |
| Pipe Material | Chrome-Plated Brass |
| Spray Head Material | Polypropylene |
| Color | Silver |
| Number of Spray Heads | 2 |
| Height | 4-3/8 in |
| Width | 13 in |
| Depth | 3 in |
| Inlet Pipe Size | 1/2 in |
| Inlet Pipe Thread Type | NPT |
| Inlet Pipe Gender | Female |
| Outlet Pipe Size | 1/2 in |
| Outlet Pipe Thread Type | NPT |
| Outlet Pipe Gender | Female |
| Assembly | Assembled |
| Valve Material | Chrome Plated Brass |
| Barrier Free | No |
| Standards | ANSI Z358.1-2014 |
| Mounting Style | Standard |
| Hazardous Location Rating | Not Rated |
| Includes Foot Pedal | No |
| Spray Head Diameter | 1-1/2 in |
