- Built-in flow control and filter
- Push handle for easy activation
- Pedestal-mounted design for stability
- Two GS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes

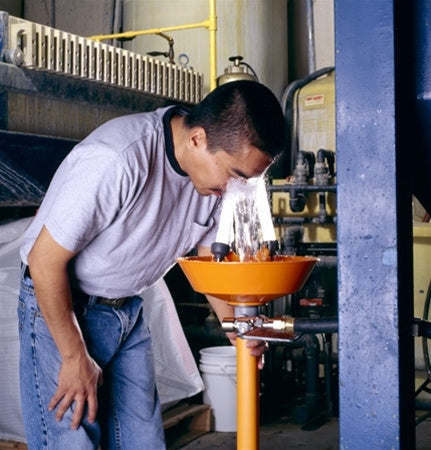

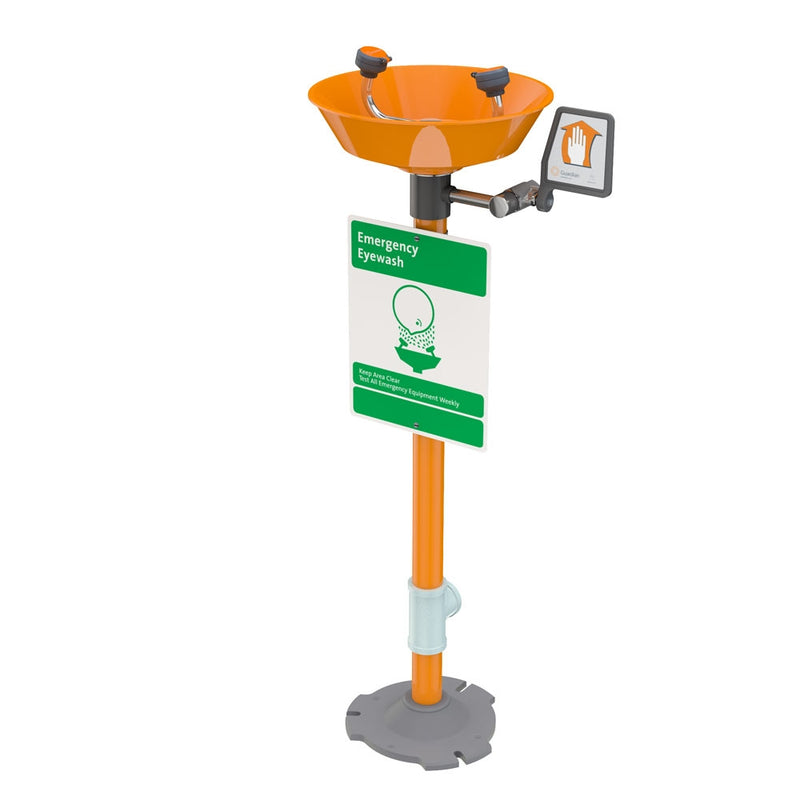

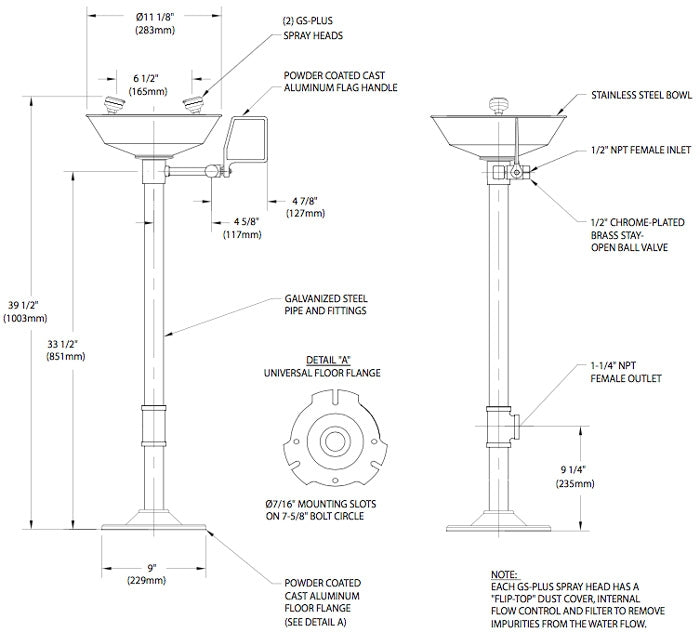

APPLICATION: Free standing, pedestal mounted eyewash. Two GS-Plus spray-type spray heads deliver a flood of water for rinsing eyes.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" diameter orange ABS plastic.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment.
| Item | Pedestal-Mount Eyewash |
| Sprayhead | Eyewash |
| Mounting | Floor Mount |
| Eyewash Bowl Material | Plastic |
| Operation | Push Handle |
| Fitting Size | 1/2" NPT Female |
| Head Dia. | 1-1/2" |
| Bowl Dia. | 11-1/2" |
| Width | 16" |
| Depth | 11-1/2" |
| Height | 38" |
| ADA Compliance | No |
| ANSI Compliant | Yes |
| Number of Heads | 2 |
