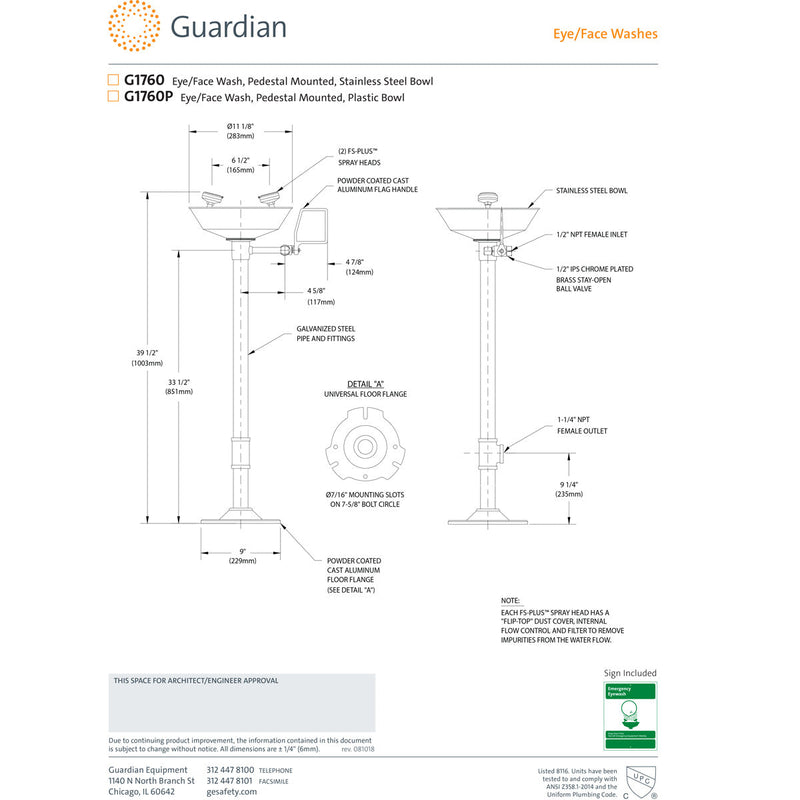

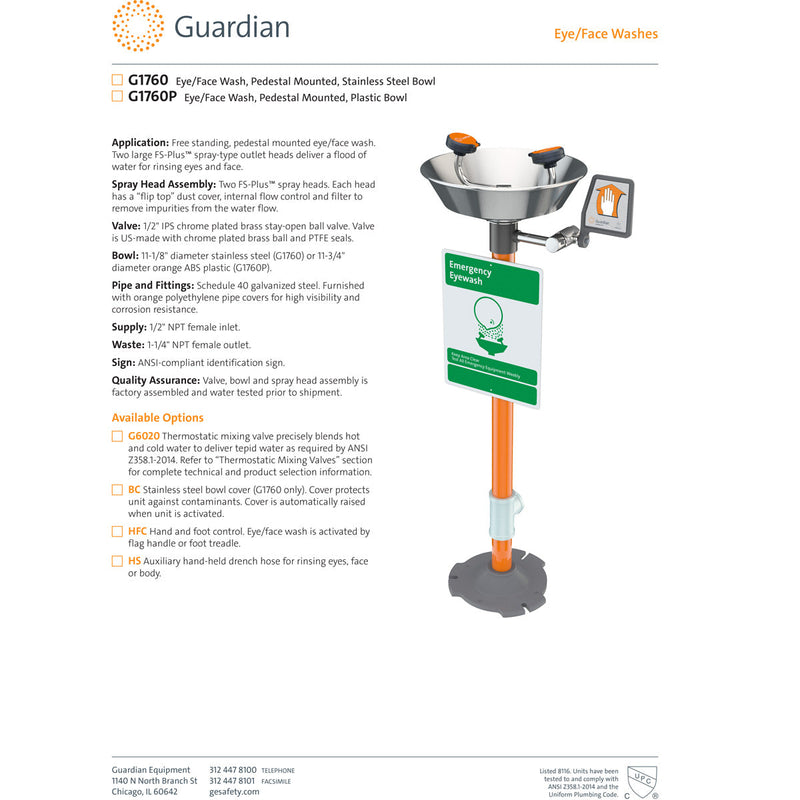

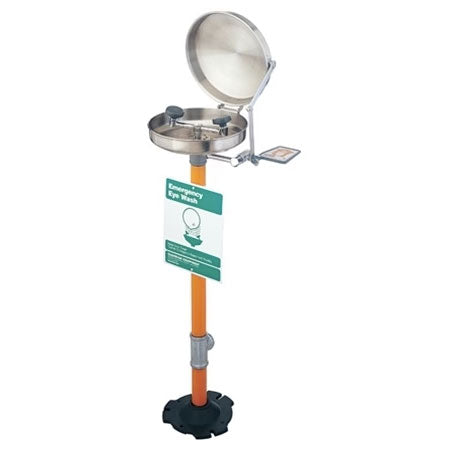

APPLICATION: Free standing, pedestal mounted eye/face wash. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" diameter. Bowl is stainless steel.
BOWL COVER: Stainless steel bowl cover (G1760 only). Cover protects unit against contaminants. Cover is automatically raised when unit is activated.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" diameter. Bowl is stainless steel.
BOWL COVER: Stainless steel bowl cover (G1760 only). Cover protects unit against contaminants. Cover is automatically raised when unit is activated.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment.
| Item | Pedestal-Mount Eyewash |
| Sprayhead | Eye/Facewash |
| Mounting | Floor Mount |
| Eyewash Bowl Material | Stainless Steel |
| Operation | Push Handle |
