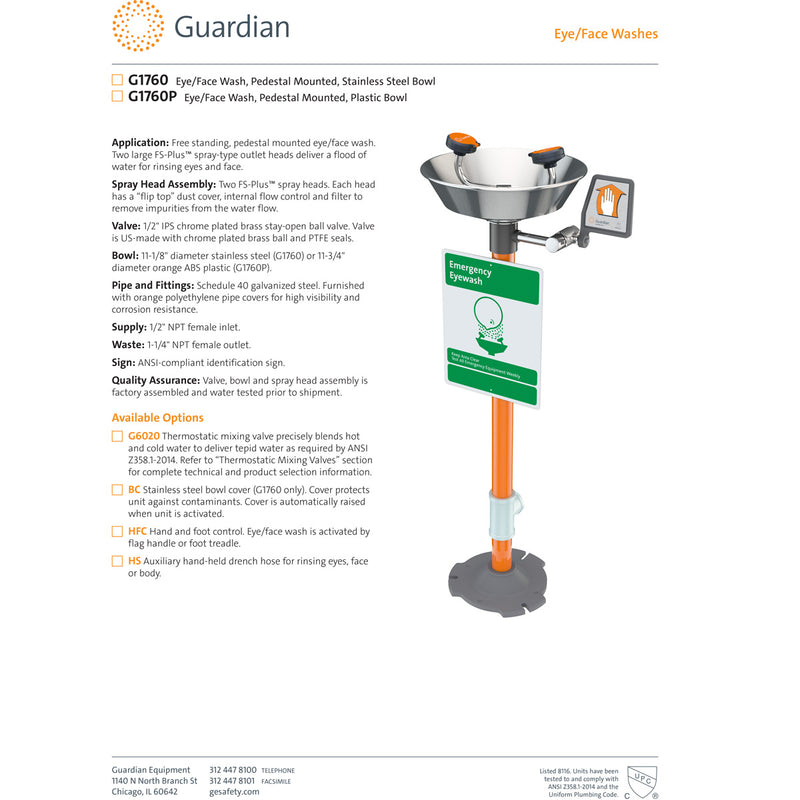

Pedestal mounted eye/face wash features 12" stainless steel bowl with galvanized steel pipe and fittings. Never lose dust covers again! Spray head assembly has two Fine Spray outlet heads with "flip-top" dust covers mounted on chrome plated brass supply arms. Activated by a 1/2" IPS chrome plated brass stay-open ball valve with cast aluminum flag handle. Bowl acts like a sink to drain water away. 1 1/4" IPS waste outlet. Unit comes with orange ABS pipe covering for high visibility. Unit meets ANSI Z358.1 standard as primary eye/face wash. Complete with ANSI compliant identification sign.
APPLICATION: Free standing, pedestal mounted eye/face wash. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" diameter. Bowl is stainless steel (G1760) or orange ABS plastic (G1760P).
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment. br>
APPLICATION: Free standing, pedestal mounted eye/face wash. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" diameter. Bowl is stainless steel (G1760) or orange ABS plastic (G1760P).
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment. br>
| Item | Eye/Face Wash |
| Eye Wash and Shower Mounting | Pedestal |
| Eye Wash Bowl Material | Stainless Steel |
| Spray Head Material | Polypropylene |
| Eye Wash Activates By | Push Handle |
| Eye Wash Covering | No |
| Assembled/Unassembled | Unassembled |
| ADA Compliance | No |
| ANSI Compliant | Yes |
| Number of Heads | 2 |
| Color | Silver |
| Eye Wash Handle Material | Aluminum |
| Valve Material | Chrome Plated Brass |
| Fitting Material | Chrome Plated Brass |
| Pipe Material | Galvanized Steel |
| Fitting Size | 1/2 in NPT Female |
| Head Dia. | 2.25 in |
| Bowl Dia. | 11 1/2 in |
| Width | 15.5 in |
| Depth | 13.75 in |
| Height | 38 in |
| Standards | ANSI Z358.1-2014 |
| Includes | Hi-Visibility Identification Sign and Inspection Tag, Nylon Flip-Top Dust Covers |
