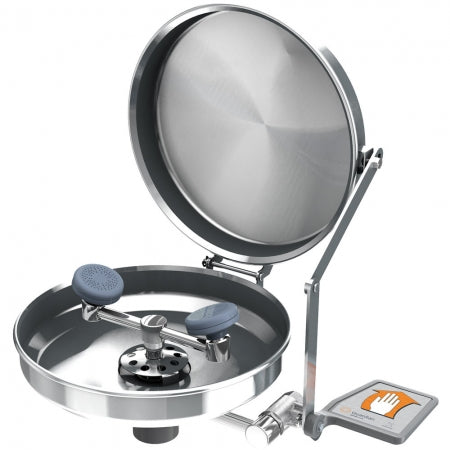

Wall mounted eye/face wash features 12" stainless steel bowl with anodized aluminum wall bracket. Never lose dust covers again! Spray head assembly has two Fine Spray outlet heads with "flip-top" dust covers mounted on chrome plated brass supply arms. Eye/face wash is activated by a 1/2" IPS chrome plated brass stay-open ball valve with cast aluminum flag handle. Activating eye/face wash valve also opens stainless steel bowl cover, which covers the entire bowl while not in use. Bowl acts like a sink to drain water away. Unit meets ANSI Z358.1 standard as primary eye/face wash. Fully factory assembled and water tested. Complete with ANSI compliant identification sign.
APPLICATION: Eye/face wash for wall mounting. Unit has stainless steel cover to protect bowl from dust, dirt and other contaminants. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has an internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" stainless steel bowl with cover. Cover is raised automatically when flag handle is activated. Cover closes when handle is returned to closed position.
MOUNTING: Heavy duty cast aluminum wall bracket with powder coated finish.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment. br>
APPLICATION: Eye/face wash for wall mounting. Unit has stainless steel cover to protect bowl from dust, dirt and other contaminants. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has an internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" stainless steel bowl with cover. Cover is raised automatically when flag handle is activated. Cover closes when handle is returned to closed position.
MOUNTING: Heavy duty cast aluminum wall bracket with powder coated finish.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment. br>
| Item | Eye/Face Wash |
| Eye Wash and Shower Mounting | Wall |
| Eye Wash Bowl Material | Stainless Steel |
| Spray Head Material | Polypropylene |
| Eye Wash Activates By | Push Handle |
| Eye Wash Covering | Yes |
| Assembled/Unassembled | Assembled |
| ADA Compliance | No |
| ANSI Compliant | Yes |
| Number of Heads | 2 |
| Color | Silver |
| Eye Wash Handle Material | Aluminum |
| Valve Material | Chrome Plated Brass |
| Fitting Material | Chrome Plated Brass |
| Pipe Material | Chrome Plated Brass |
| Fitting Size | 1/2 in NPT Female |
| Head Dia. | 2.25 in |
| Bowl Dia. | 11 1/2 in |
| Width | 15.5 in |
| Depth | 13.75 in |
| Height | 9.5 in |
| Standards | ANSI Z358.1-2014 |
| Includes | Hi-Visibility Identification Sign, Stainless Steel Hinged Dust Cover, and Inspection Tag |
WARNING:Â California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
