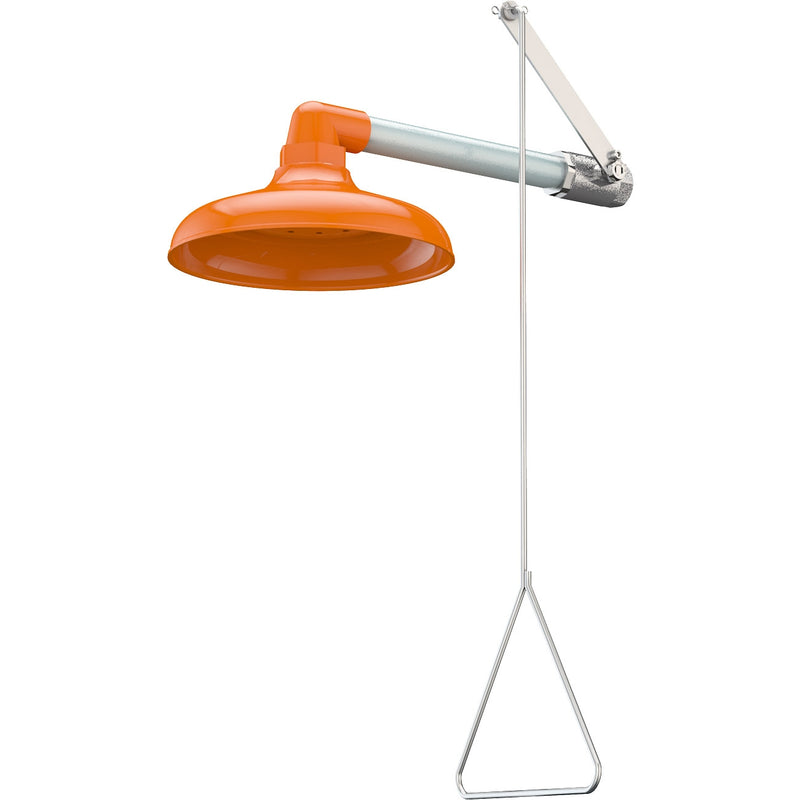

- Horizontally mounted for optimal space utilization
- 10-inch orange ABS plastic shower head
- 1" IPS chrome-plated brass stay-open valve
- Galvanized steel pipe with ABS plastic elbow
- ANSI Z358.1-2014 compliant
- Includes inspection tag and instruction booklet
- Designed for quick emergency response
Emergency Shower Eye Wash and Shower Mounting Wall Shower Head Material ABS Plastic Head Dia 10 In. Shower Head Activates By Pull Rod Flow Rate 30 gpm Ball Valve Type 1 in IPS Brass Stay Open Handle Material Stainless Steel Handle Length 29 In. Fitting Size 1 in NPT Pipe Material Galvanized Steel Pipe Dimensions 12 In.L x 1 in Dia. Standards ANSI Z358.1-2014 Includes Sign Inspection Tag and Instruction Booklet

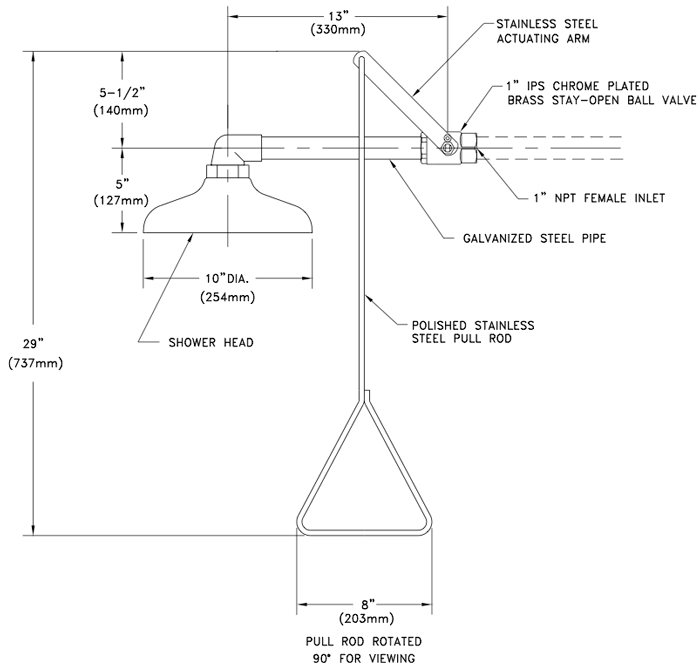

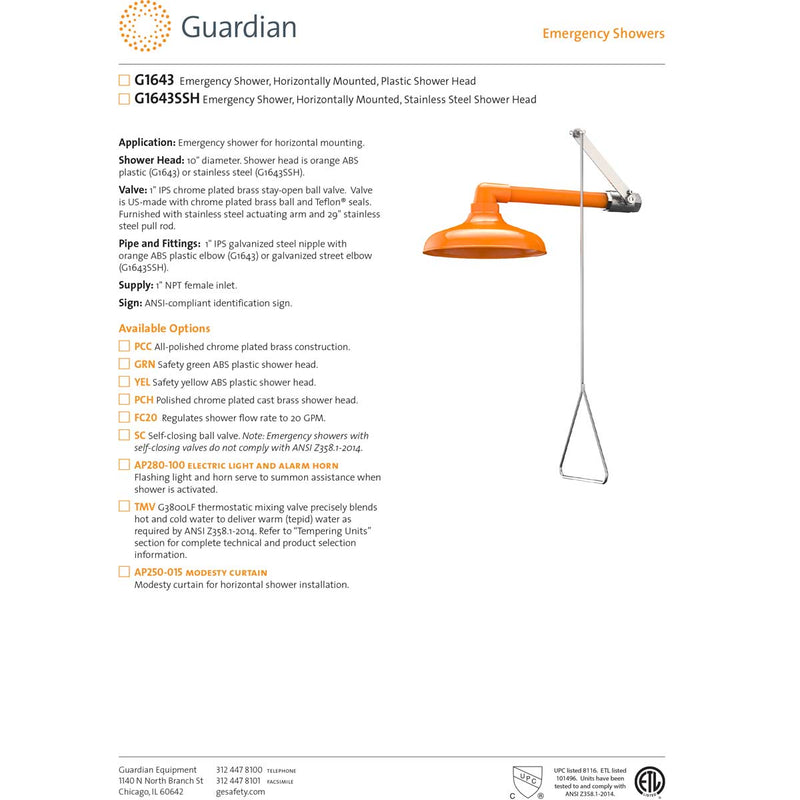

APPLICATION: Emergency shower for horizontal mounting.

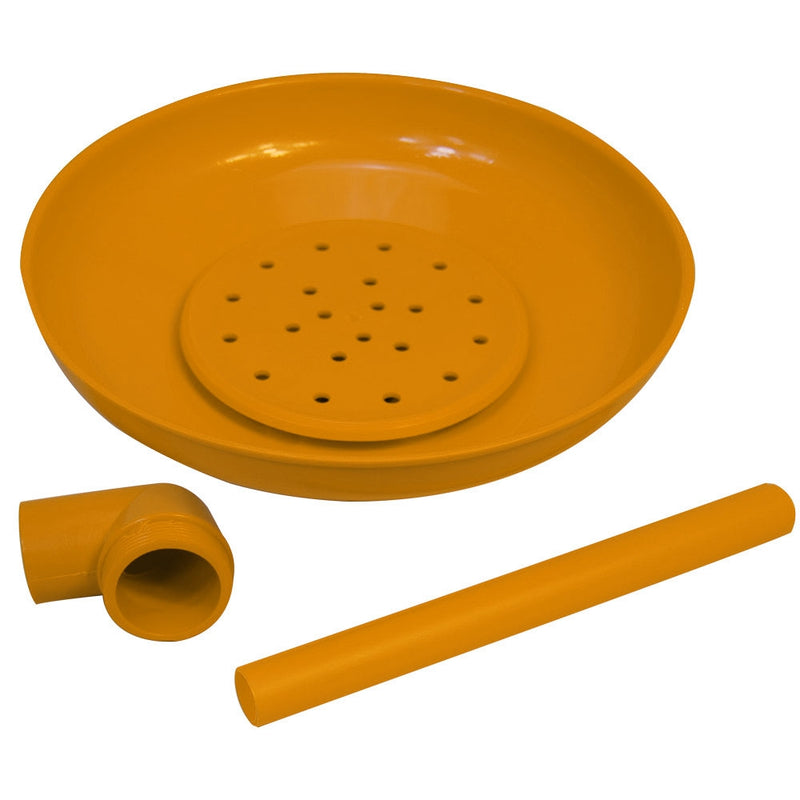

SHOWER HEAD: 10" diameter orange ABS plastic.
VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
PIPE AND FITTINGS: 1" IPS galvanized steel nipple with orange ABS plastic elbow.
SUPPLY: 1" NPT female inlet.
SIGN: ANSI-compliant identification sign.
| Item | Emergency Shower |
| Eye Wash and Shower Mounting | Wall |
| Shower Head Material | ABS Plastic |
| Head Dia. | 10 in |
| Shower Head Activates By | Pull Rod |
| Flow Rate | 30 gpm |
| Ball Valve Type | 1 in IPS Brass Stay Open |
| Handle Material | Stainless Steel |
| Handle Length | 29 in |
| Fitting Size | 1 in NPT |
| Pipe Material | Galvanized Steel |
| Pipe Dimensions | 12 in L x 1 in dia |
| Standards | ANSI Z358.1-2014 |
| Includes | Inspection Tag and Instruction Booklet, Sign |
| ANSI Compliant | Yes |
| ADA Compliance | No |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
