Guardian G1562 15 Gallon Portable Eyewash/Drench Hose Unit
Availability : Usually Ships in 12-15 Business Days
- Stainless steel pressurized tank with built-in handles for easy transport.
- Single GS-Plus spray head, flip-top dust cover, internal flow control, and filter.
- Weighs 36.5 lbs empty and 118.9 lbs when full.
- 15-gallon capacity.
- Meets ANSI Z358.1-2014 standards.
The Guardian G1562 15 Gallon Portable Eyewash and Drench Hose Unit features an easy to transport stainless steel pressurized tank with built in handles, air intake fitting, pressure gauge and a pressure relief valve. The 6 foot high-pressure reinforced PVC hose has a single GS-Plus spray head with flip top dust cover, internal flow control and filter, and a chrome plated brass squeeze valve with a stainless steel lever handle. Featuring two GS-Plus spray heads with flip top dust covers, the Guardian G1562 eye wash portion of the eyewash/drench hose unit has an internal flow control and filter, and a 1/2" IPS chrome plated brass stay-open ball valve with flag handle. One of the biggest benefits of a self-contained eye wash and drench hose unit is to bring safety to areas where a continuous supply of water is not available. The Guardian G1562 weights 36.5 lb. when empty and 118.9 lb. when full. This durable portable eyewash keg meets ANSI Z358.1-2014 standards, is SEI certified and include 8 oz. of bacteriostatic additive (G1540BA), ANSI-compliant identification sign, and inspection tag and instructions.
Application:Ā
Portable eyewash/drench hose unit uses air pressure to deliver 10 gallons (37.5 liters) of water for 15 minutes. For use in low hazard areas where a continuous supply of water is not available.
Installation:Ā

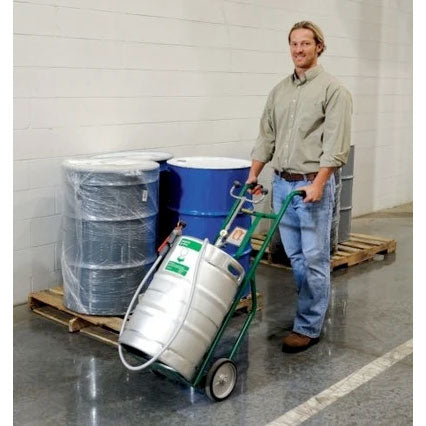

Unit can be placed in any area where hazards are present. Available with optional dolly or hand truck for ease of movement (see below). To prepare unit for use, fill with 10 gallons (37.5L) of clean potable water and add bacteriostatic additive (supplied with unit). Bacteriostatic additive protects against growth of bacteria, fungus, algae and acanthamoeba. After filling, pressurize with 80 PSI (5.5 bar) air pressure.
Tank:Ā
15 gallon (56L) stainless steel tank. Tank has built-in carrying handles, air intake valve, pressure gauge and pressure relief valve.
Eyewash:Ā
Use to wash userās eyes for 15 minutes. Furnished with (2) GS-Plus low flow spray heads with āflip topā dust covers, integral flow controls and filters. Valve is Ā½" IPS chrome plated brass ball valve with flag handle. Userās hands are free while eyewash is in operation.
Drench Hose:Ā
For rinsing any part of the userās eyes, face or body. Furnished with single GS-Plus spray head, self-closing valve with handle and 6 foot (2m) reinforced PVC hose.
Discharge Time:Ā
Eyewash delivers .7 GPM (2.6L/min) for 15 minutes. Drench hose delivers 1.7 GPM (6.4L/min) for 6 minutes. Discharge time is less if eyewash and drench hose are used simultaneously.
Weight:Ā
35 lbs. (15.9kg) empty, 116 lbs. (52.6kg) filled.
Sign:Ā
Furnished with ANSI-compliant sign.
Quality Assurance:Ā
Unit is assembled and factory tested prior to shipment.
Maintenance:Ā
Unit must be inspected regularly. Refill unit after testing or use. Water and bacteriostatic additive must be changed at least once every six months.
| Item | Portable Eyewash |
| Operation | Push Handle |
| Capacity | 15 Gallons |
| Height | 39" |
| Diameter | 16" |
| Head Dia. | 1-1/4" |
| Flow Rate0.4 gpm | Flow Rate0.4 gpm |
| Weight Empty | 36.5 lb. |
| Weight Full | 118.9 lb. |
